Horizontal Pusher Centrifuge Manufacturer
Horizontal Pusher Centrifuge Manufacturer in India
Shreeji Engineers manufactures, supplies and exports Horizontal Pusher Centrifuge Machines for continuous solid-liquid separation of suitable crystalline and free-filtering products.
Our Horizontal Pusher Centrifuge combines a horizontally arranged rotating basket with a hydraulically operated reciprocating pusher mechanism to support continuous filtration, dewatering and solids discharge.
Available in different basket diameters and production capacities, each machine can be configured according to product characteristics, feed conditions, required throughput, material of construction and filtration requirements.
These machines are used mainly in pharmaceutical, chemical, fertilizer and salt processing applications requiring continuous separation.
Horizontal Pusher Centrifuge Enquiry
Key Features of Horizontal Pusher Centrifuge
Designed for continuous solid-liquid separation with horizontal construction, hydraulic cake movement, multiple machine sizes and application-specific materials.
Horizontal Basket Design
Horizontal rotating basket configuration designed for continuous filtration and stable solids movement.
Continuous Operation
Supports continuous feeding, filtration, dewatering and solids discharge.
Hydraulic Pusher System
Reciprocating hydraulic mechanism progressively moves the filter cake toward discharge.
Multiple Capacity Options
Different HT-series machine sizes are available for varying production requirements.
Replaceable Filtration Screen
Screen and sieve configurations can be selected according to crystal size and filtration requirements.
Material Options
Available in multiple stainless-steel and corrosion-resistant material grades.

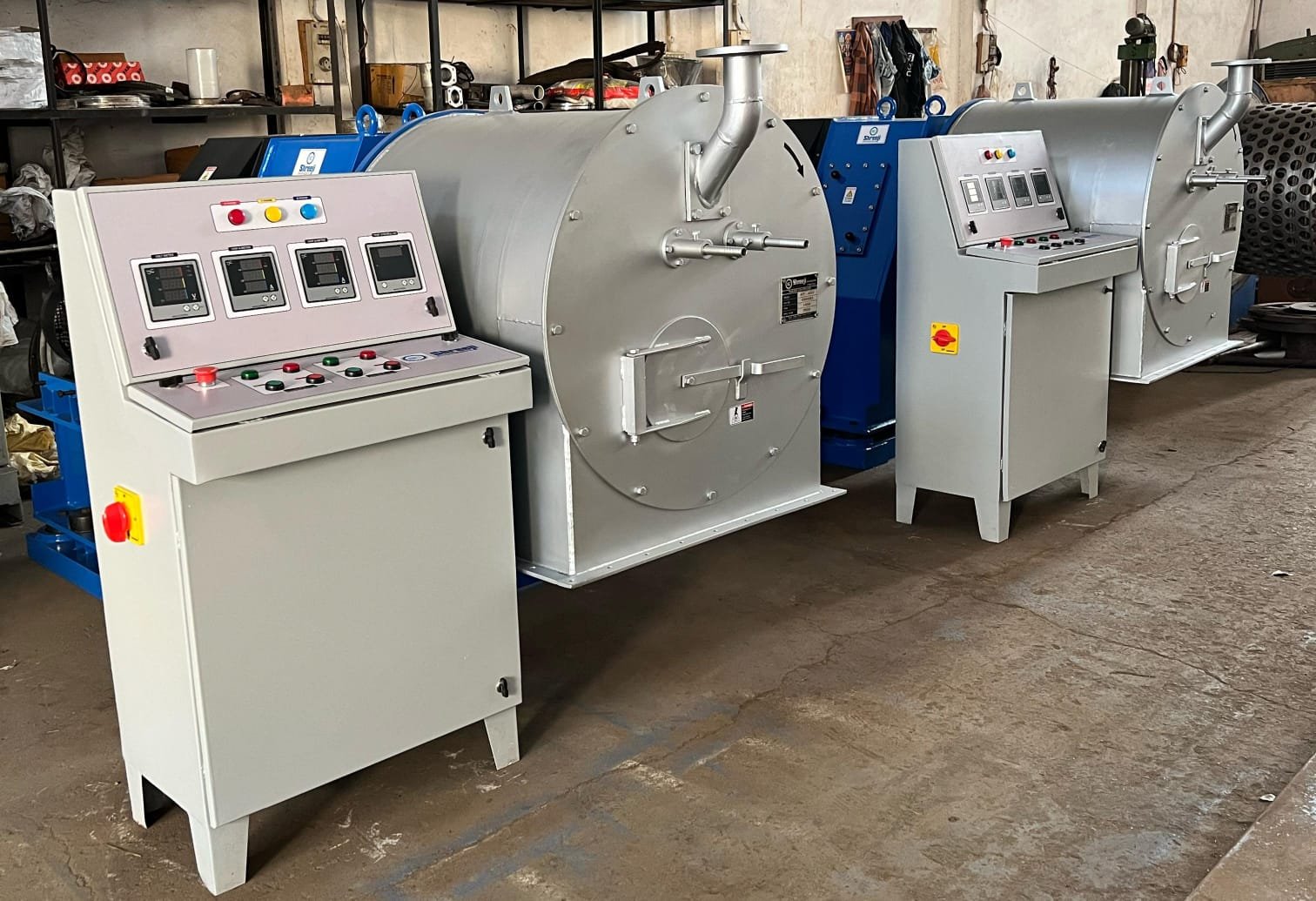

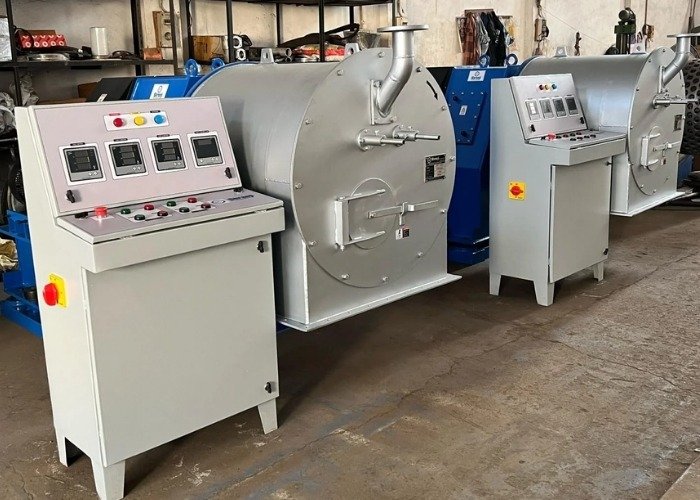

Horizontal Pusher Centrifuge Machine
Continuous centrifugal filtration equipment for suitable crystalline and granular products.
A Horizontal Pusher Centrifuge is a continuously operating filtration centrifuge used to separate solid particles or crystals from a liquid phase using centrifugal force.
Process slurry enters the rotating basket where the liquid phase passes through the filtration screen while the solids remain inside the basket and form a filter cake.
A hydraulically operated reciprocating pusher progressively moves the separated cake toward the solids discharge end, allowing filtration and solids discharge to occur continuously.
Working Principle of Horizontal Pusher Centrifuge
Continuous feeding, centrifugal filtration and hydraulic solids movement take place within the same machine.
Slurry Feeding
Process slurry is continuously introduced into the rotating horizontal basket.
Centrifugal Filtration
Centrifugal force separates the liquid phase through the filtration screen.
Cake Formation
Retained solids gradually form a filter cake on the internal screen surface.
Hydraulic Discharge
The reciprocating pusher moves the cake progressively toward the discharge section.
Main Components of Horizontal Pusher Centrifuge
The Horizontal Pusher Centrifuge combines precision mechanical, filtration and hydraulic components to provide continuous solid-liquid separation.
Rotating Basket
Main horizontal rotating section where centrifugal filtration and cake formation take place.
Pusher Assembly
Reciprocating mechanism progressively transfers separated solids toward the discharge end.
Filtration Screen
Retains solid particles while allowing the separated liquid phase to pass through.
Main Rotor Drive
Provides rotational power required for centrifugal solid-liquid separation.
Feed Distribution System
Introduces and distributes process slurry into the rotating filtration section.
Shaft & Bearing Assembly
Supports rotating components and maintains mechanical alignment during operation.
Hydraulic Power Unit
Supplies hydraulic pressure for operation of the reciprocating pusher mechanism.
Control System
Controls applicable machine functions according to the selected automation configuration.
Industrial Applications of Horizontal Pusher Centrifuge
Suitable for processes involving filterable crystalline or granular solids requiring continuous separation.
Pharmaceutical
Suitable crystalline pharmaceutical products and process intermediates.
Chemical
Crystalline chemical products requiring continuous filtration and discharge.
Salt Processing
Suitable crystalline salts requiring continuous separation and dewatering.
Fertilizer
Selected crystalline fertilizer products according to process requirements.
Available Material of Construction
Construction material is selected according to product compatibility, temperature and corrosion conditions.
Horizontal Pusher Centrifuge Models & Specifications
NaCl capacities shown below are reference values. Actual throughput depends on material characteristics, feed concentration, crystal size and operating conditions.
| Model | Basket Dia (mm) | Hy. Motor HP | Rotor Motor HP | Weight (Kg) | Size (L×W×H m) | Capacity (NaCl Kg/Hr) |
|---|---|---|---|---|---|---|
| HT - 250 | 275 | 5 | 7.5 | 1700 | 1.9 × 1.2 × 1 | 2000 |
| HT - 350 | 375 | 7.5 | 10 | 2000 | 2 × 1.25 × 1.1 | 3000 |
| HT - 450 | 475 | 10 | 15 | 2500 | 2.4 × 1.3 × 1.4 | 6000 |
| HT - 550 | 575 | 15 | 25 | 2800 | 2.5 × 1.3 × 1.4 | 10000 |
| HT - 650 | 675 | 20 | 30 | 3000 | 2.6 × 1.4 × 1.5 | 13000 |
| HT - 750 | 755 | 25 | 40 | 4200 | 3 × 1.5 × 1.7 | 17000 |
| HT - 850 | 855 | 30 | 60 | 5200 | 3.2 × 1.5 × 1.8 | 25000 |
| HT - 950 | 955 | 40 | 60 | 6000 | 3.2 × 1.6 × 1.8 | 32000 |
| HT - 1050 | 1055 | 50 | 70 | 7000 | 3.5 × 1.6 × 1.9 | 40000 |
Select the Right Horizontal Pusher Centrifuge
Machine selection depends on the process product, operating conditions and required production capacity.
Application-Based Selection
Correct machine selection depends on product characteristics and operating conditions rather than capacity alone.
Share your application information so the basket size, screen configuration, construction material and machine capacity can be selected appropriately.
Information Required
Customized Horizontal Pusher Centrifuge
Machine configuration can be selected according to product characteristics, required capacity, filtration behaviour and plant operating conditions.
Basket Size
Basket diameter and machine size are selected according to throughput requirements.
Production Capacity
Multiple HT-series configurations are available for different production requirements.
Construction Material
Material is selected according to corrosion, product-contact and process requirements.
Screen Configuration
Filtration screens are selected according to crystal size and separation requirements.
Hydraulic System
Hydraulic configuration is matched with the machine model and process requirement.
Control Configuration
Electrical and automation options can be selected according to plant requirements.
Horizontal Pusher Centrifuge Manufacturer in India
Shreeji Engineers manufactures complete centrifuge machines and associated replacement components for domestic and international applications.
Machine Inspection & Testing
Critical components and assembled machines are inspected during manufacturing and before dispatch.
Horizontal Pusher Centrifuge Frequently Asked Questions
1. What is a Horizontal Pusher Centrifuge?
A Horizontal Pusher Centrifuge is a continuous filtration centrifuge that separates solids from liquids using centrifugal force and moves the separated solids using a reciprocating pusher.
2. Is the machine continuously operated?
Yes. The machine is designed for continuous feeding, filtration and solids discharge for suitable process materials.
3. What does the hydraulic pusher do?
The hydraulic system creates reciprocating movement that progressively transfers separated cake toward discharge.
4. Which industries use Horizontal Pusher Centrifuges?
They are commonly used in pharmaceutical, chemical, fertilizer and salt processing applications.
5. Can the machine be customized?
Yes. Basket size, capacity, construction material, filtration screen, hydraulic configuration and control options can be selected according to process requirements.
6. How do I select the correct machine model?
Share your product name, required capacity, feed concentration, crystal size, process liquid, temperature and required cake moisture with Shreeji Engineers.
Explore Our Pusher Centrifuge Range
Need a Horizontal Pusher Centrifuge for Your Process?
Share your product name, required capacity, feed concentration, crystal size and process details with Shreeji Engineers. Our team can help you select a suitable HT-series machine configuration for your application.
